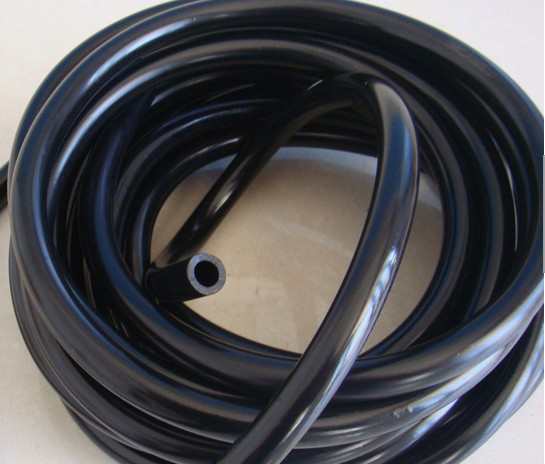

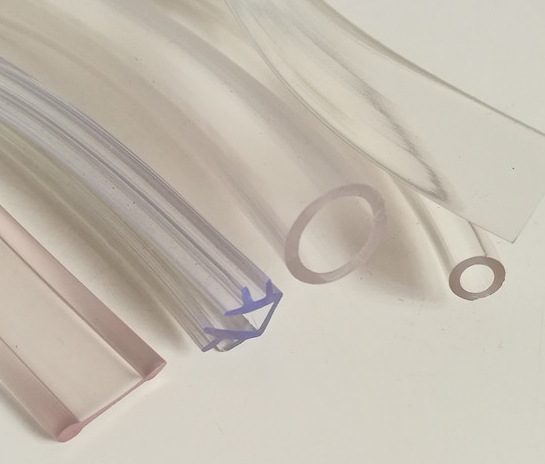

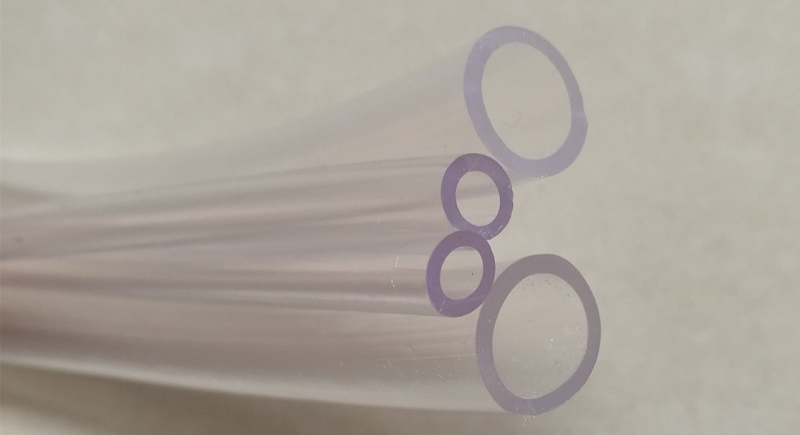

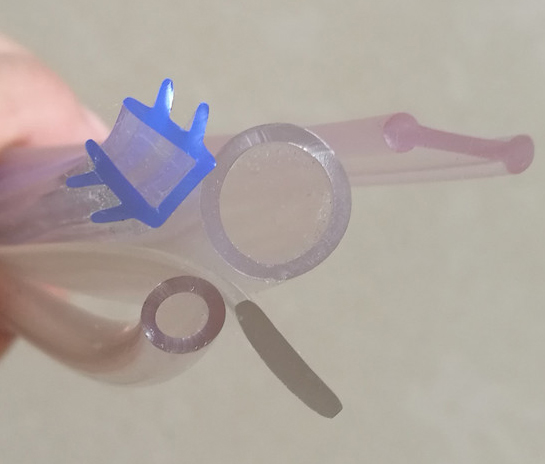

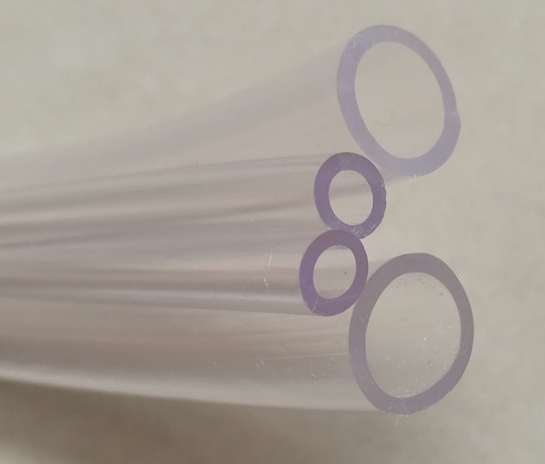

Letu Automotive can manufacture an extensive selection of PVC tubing, clear PVC vinyl tubing, PVC vinyl pipe, PVC vinly tube, polyvinyl chloride flexible tubing, or vinyl tubing, PVC extrusions, extruded PVC profiles, PVC seals, gaskets from Hebei, China.
Application:
Delivery of water, oil, air under low working conditions in factory, construction, farm and family.
Features:
Flexible, transparent, lightweight, durable and multiple color selection.
Properties:
| Material: | PVC |
| Dielectric strength: | 20 kV/mm |
| Tensile Strength: | 24 N/ mm² |
| Elongation at break: | 300% |
| Operating temperature: | –10 °C to +65 °C |
| Wall thickness: | 0.4 mm – 3 mm |
| Available inside diameter: | 1.5 mm – 35 mm |
| Color fastness: | Standard 6 |
Specification:
| Inner Diameter | Outer Diameter | W.P.(at 23℃) | Roll Length | ||||
| inch | mm | inch | mm | bar | psi | m | ft |
| 1/8 | 3 | 0.196 | 5 | 5 | 75 | 100 | 300 |
| 1/6 | 4 | 0.236 | 6 | 5 | 75 | 100 | 300 |
| 1/5 | 5 | 0.314 | 8 | 5 | 75 | 100 | 300 |
| 1/4 | 6 | 0.354 | 9 | 5 | 75 | 100 | 300 |
| 5/16 | 8 | 0.433 | 11 | 5 | 75 | 100 | 300 |
| 3/8 | 10 | 0.511 | 13 | 5 | 75 | 100 | 300 |
| 1/2 | 12 | 0.590 | 15 | 3 | 45 | 100 | 300 |
| 5/8 | 15 | 0.708 | 18 | 3 | 45 | 50 | 150 |
| 3/4 | 19 | 0.866 | 22 | 3 | 45 | 50 | 150 |
| 1 | 25 | 1.181 | 30 | 3 | 45 | 50 | 150 |
| 1-1/4 | 32 | 1.496 | 38 | 3 | 45 | 30 | 90 |
| 1-1/2 | 38 | 1.732 | 44 | 3 | 45 | 30 | 90 |
| 2 | 50 | 2.283 | 58 | 3 | 45 | 30 | 90 |
